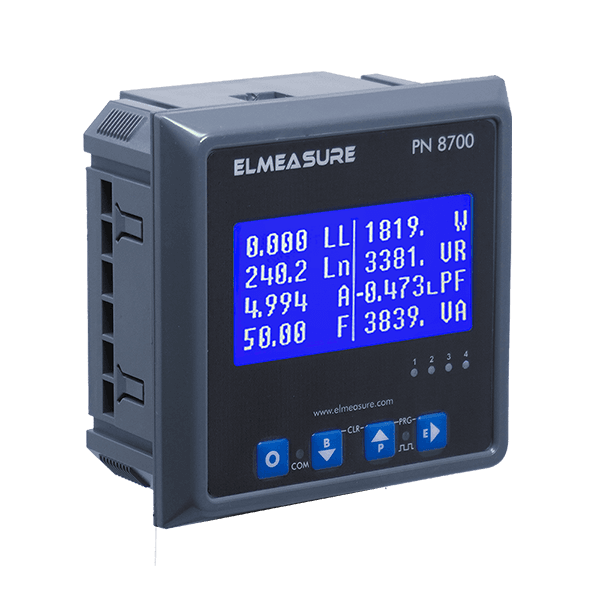

Comprehensive Power Monitoring with the Power Quality Monitor
The Power Quality Monitor is designed to provide deep insights into the health of your power systems, offering real-time analysis of electrical parameters such as voltage, current, Total Harmonic Distortion (THD), and individual harmonics up to the 63rd order. Equipped with dual communication ports (RS485, Ethernet), this device ensures seamless integration into industrial, commercial, and residential systems. It supports continuous data logging and easy remote monitoring, making it a must-have tool for efficient power management.
High-end multifunction meter for comprehensive energy management
- Automatic connection or disconnection of DG connected to common bus
- Measures THD and Individual harmonics upto 63rd order with a sampling rate of 512 samples/cycle (PN)
- Built in web server displays all the parameters and waveform for Voltage and current
- Dual communication port- RS485, Ethernet- simultaneous polling
- Power quality inspection of the main incomer
What is a Power Quality Monitor?
A Power Quality Monitor assesses electrical system health by tracking voltage, current, THD, and harmonics. It delivers real-time insights into power quality, helping identify issues, improve reliability, and ensure efficient system operation.
How does the Power Quality Monitor measure Total Harmonic Distortion (THD)?
The Power Quality Monitor measures THD by analyzing system voltage and current waveforms. It detects harmonic content in the supply and reports total harmonic distortion, helping assess overall power quality and system performance.
Can I monitor the Power Quality Monitor remotely?
Yes, the Power Quality Monitor features dual communication ports (RS485 and Ethernet) for simultaneous data polling. It also includes a built-in web server that allows remote monitoring of power parameters and waveforms from any location.
What power parameters can the Power Quality Monitor measure?
The Power Quality Monitor measures critical power quality parameters such as voltage, current, THD, harmonics up to the 63rd order, K-factor, crest factor, and power interruptions, ensuring a comprehensive understanding of power system health.
What is the data storage capacity of the Power Quality Monitor?
The Power Quality Monitor includes 256MB of internal storage with the ability to download data via USB or pen drive (up to 8GB). This allows for continuous data logging and easy access to historical power quality data.
