Current Transformers

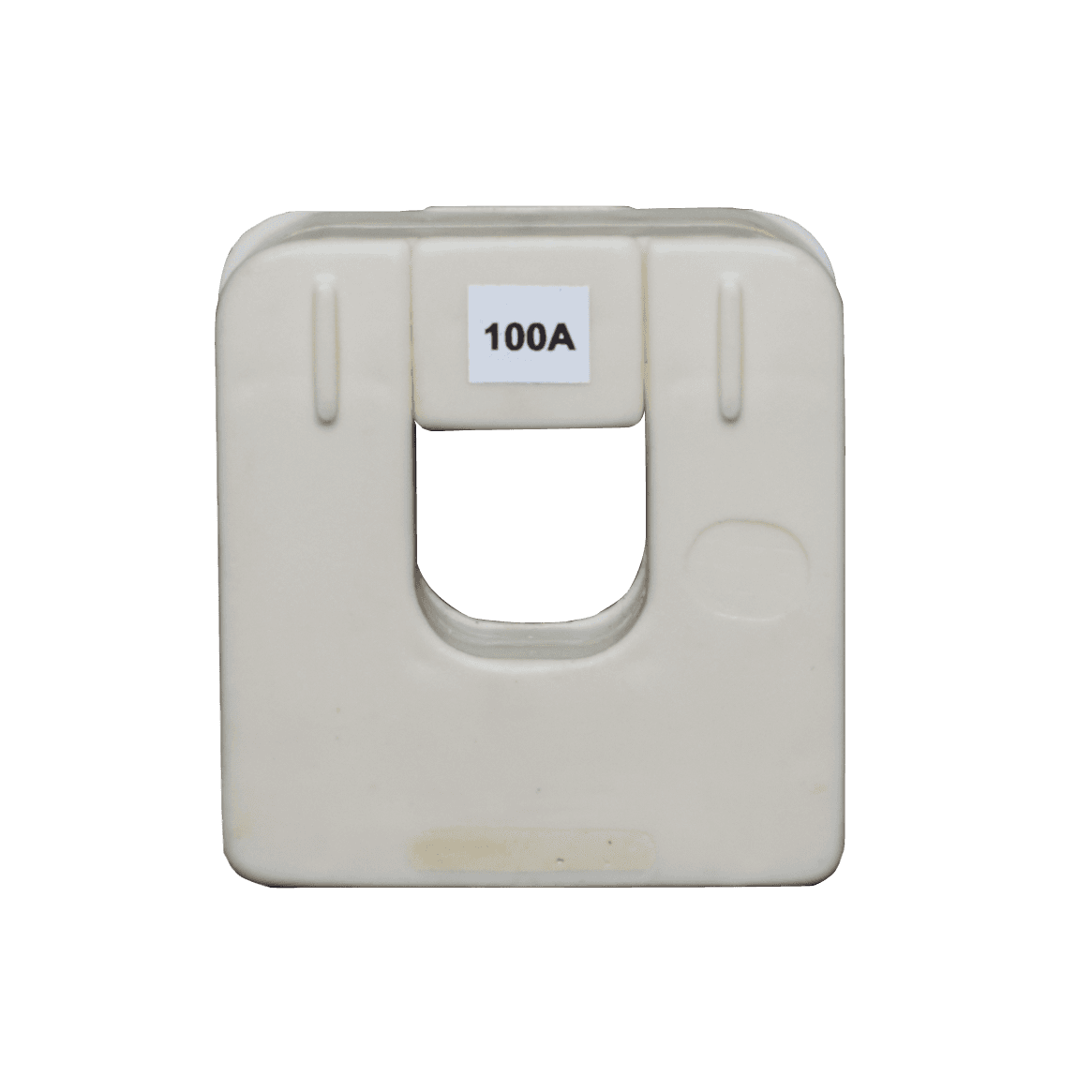

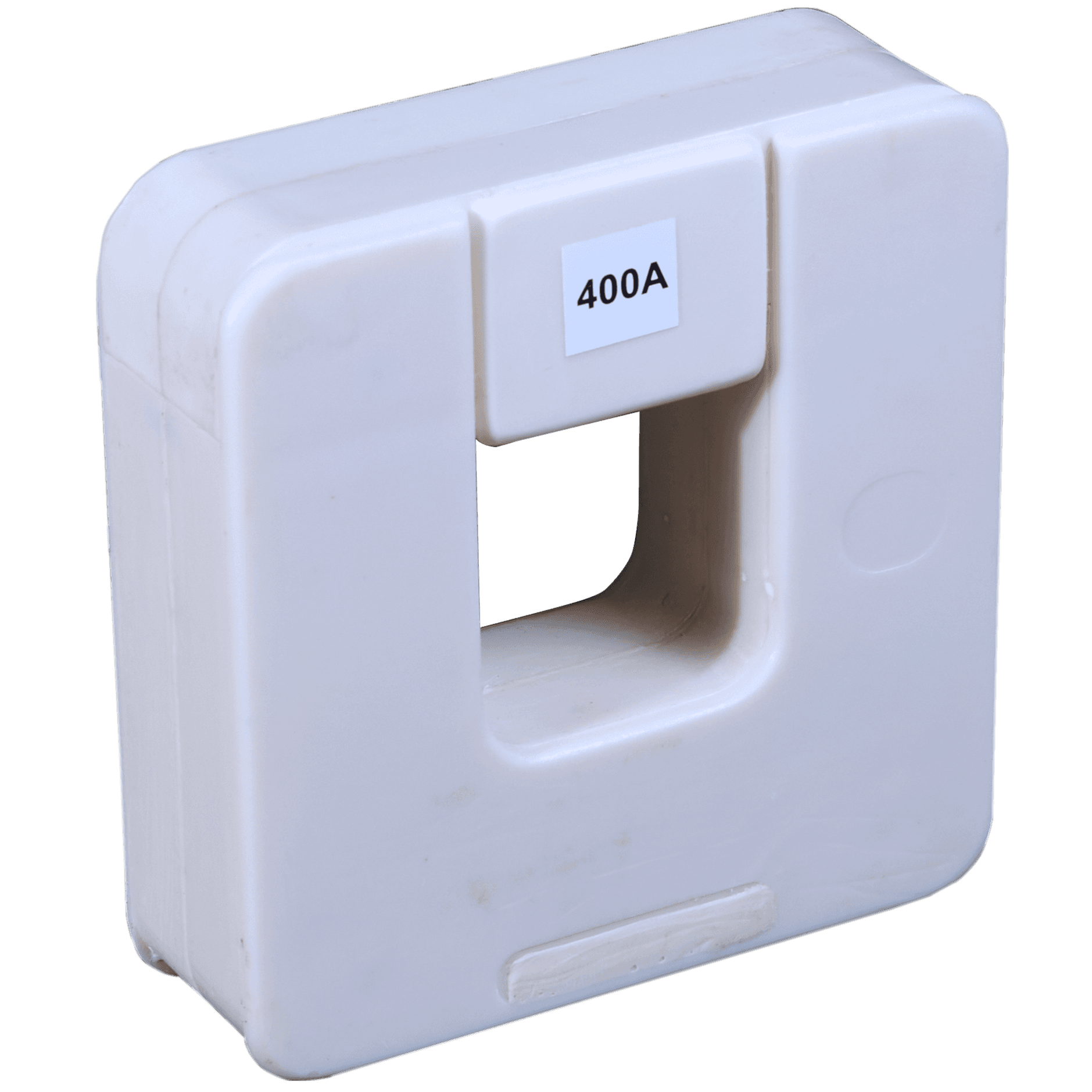

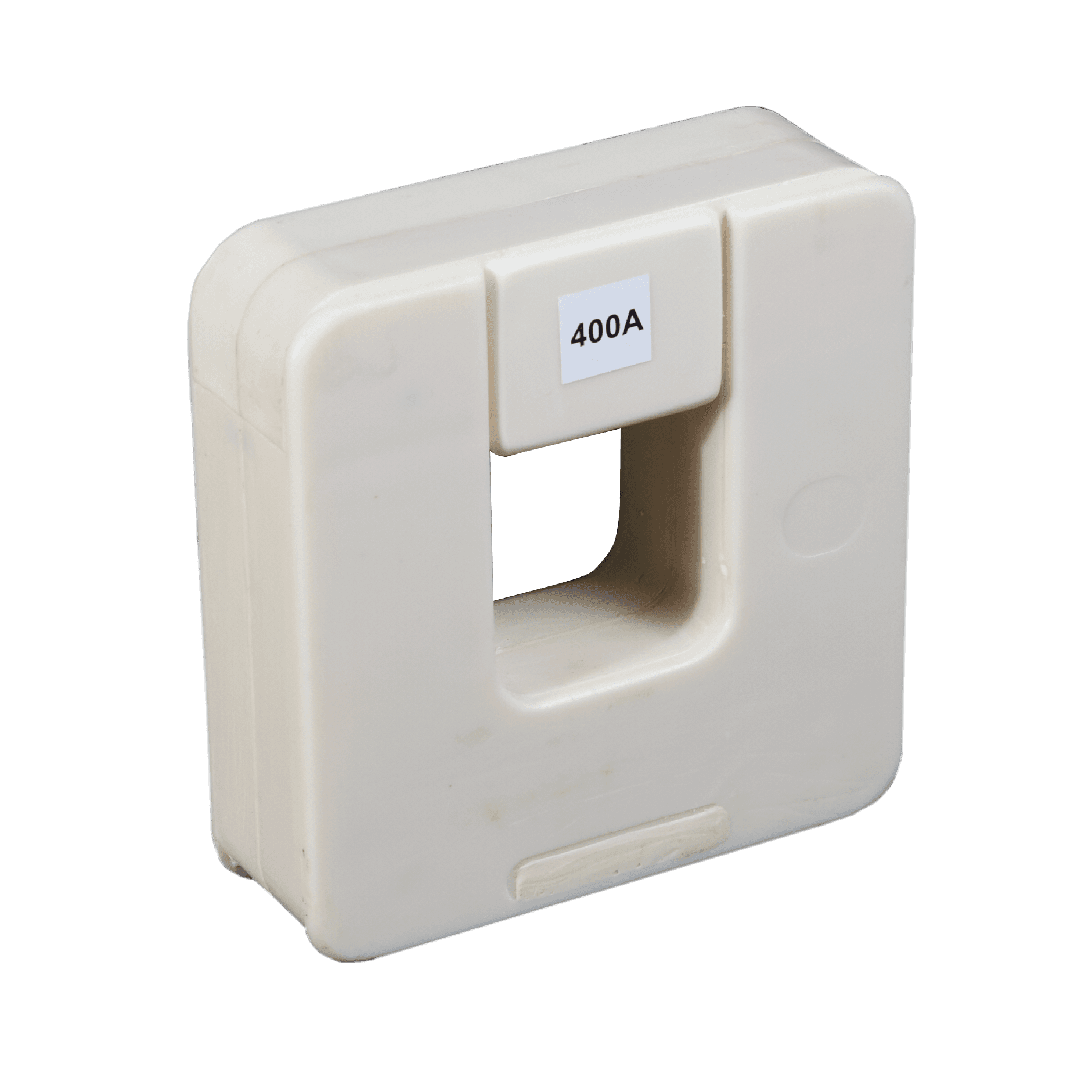

Split-Core Current Transformers
1024
samples per cycle
EN 50160
power quality reports
0.2 Class
metering accuracy
Overview
The CT Series Split Core Current Transformers are designed to provide accurate real-time current monitoring, essential for energy management and power monitoring applications. Their split-core design allows for easy installation without the need for cable disconnection, making them perfect for retrofitting and upgrading existing systems. The CT Series is available in a variety of ratings, with a range of output options for different measurement needs.
Reliable IoT gateways to connect different systems together.
- Event recording with time stamp (all basic & power parameters).
- Unbalance load and voltage with calculated neutral current.
- Optional digital output for all basic and power parameters.
- In control panel to measure different electrical loads.
- Dynamic and seamless communication.
What is a Split Core Current Transformer (CT) and how does it work?
A Split Core Current Transformer is a device that provides accurate current measurement for electrical systems. It operates by measuring the current passing through a conductor and outputting a proportional voltage signal for monitoring.
How do I install a Split Core Current Transformer?
The split core design allows for easy installation around existing cables or conductors without disconnecting them. Simply open the core, clamp it around the wire, and close it to secure the connection.
Can the Split Core Current Transformers be used in high-frequency environments?
Yes, the CT Series is designed to work within the 50Hz to 400Hz range, making it suitable for both standard and high-frequency environments.
What is the output of the Split Core Current Transformers?
The CT Series provides a default 666mV output signal, with an optional 1000mV output for applications requiring higher precision.
Are the Split Core Current Transformers suitable for residential applications?
Yes, the CT Series is suitable for residential applications, allowing homeowners to monitor energy consumption and optimize appliance usage.
