What is the Multi-Function Energy Meter?

The Multi-Function Energy Meter measures voltage, current, frequency, and harmonics to provide a complete view of power system health. It helps businesses and homeowners optimize energy use and maintain reliable electrical performance.

What is the difference between the Multi-Function Meter and a standard energy meter?

A Multi-Function Meter provides more than energy data by measuring power factor, frequency, and harmonics. It is ideal for applications needing detailed power quality insights, including industrial facilities and renewable energy systems.

Can the Multi-Function Energy Meter be used for Digital Ammeter and Digital Voltmeter functions?

Yes, the Multi Function Energy Meter includes Digital Ammeter and Digital Voltmeter functionalities, providing real-time, accurate measurements of voltage and current.

Can the Multi-Function Energy Meter be installed on a DIN Rail Energy Meter system?

Yes, the Multi Function Energy Meter is available in a DIN Rail Energy Meter version, making it easy to install in industrial setups where DIN rail mounting is the standard.

How accurate is the Multi-Function Energy Meter?

The Multi Function Energy Meter offers Class 1.0 accuracy by default, with an optional Class 0.5 for higher precision. This ensures reliable and accurate readings of energy consumption and power quality.

Multi-Functional Energy Meter| Multi Function Meter

Accurate Power Monitoring with the Multi Function Energy Meter

The Multi Function Energy Meter is designed to offer accurate and comprehensive monitoring for a wide range of electrical parameters, including voltage, current, power factor, frequency, and harmonics. With Digital Ammeter, Digital Voltmeter, and Frequency Meter functionalities, this meter is an all-in-one solution for managing energy consumption. Available in both DIN Rail Energy Meter and panel-mounted options, it is suitable for industrial, commercial, and residential applications.

My quote

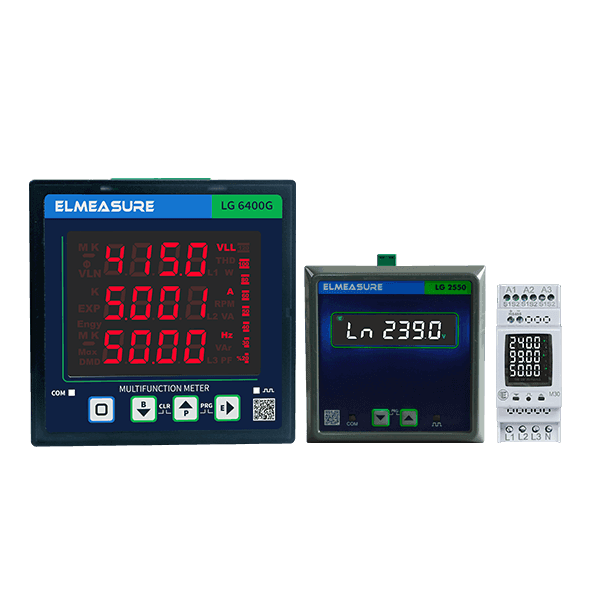

Multi-Functional Energy Meters
Display type

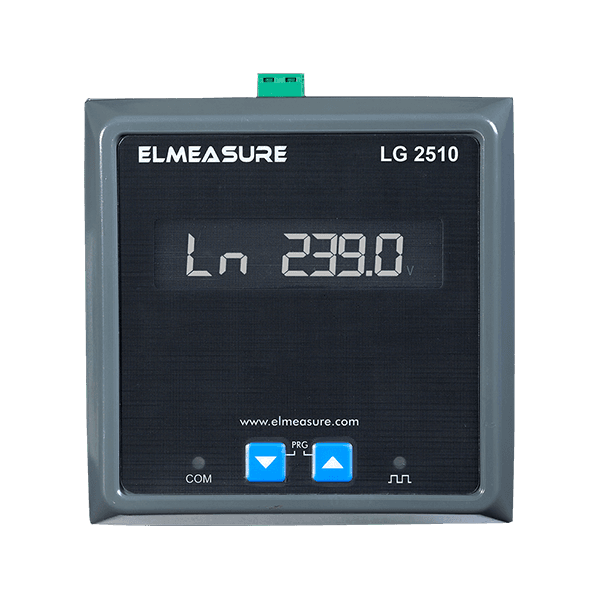

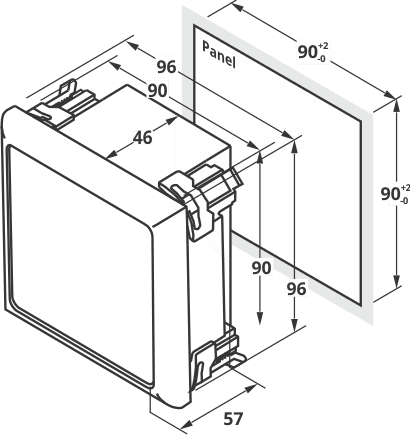

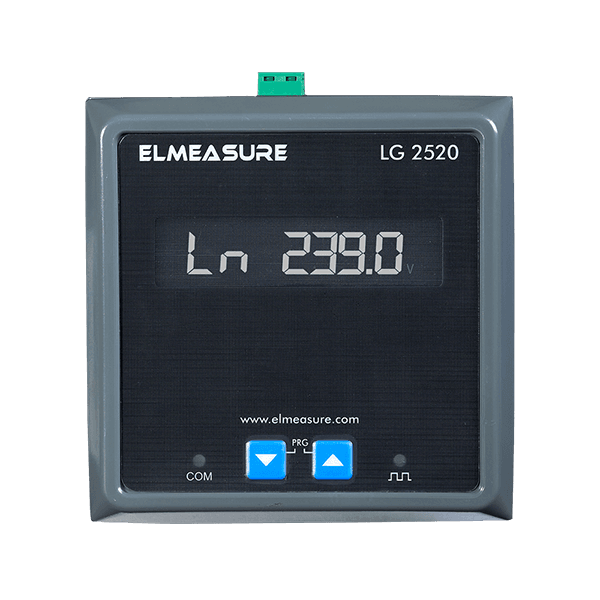

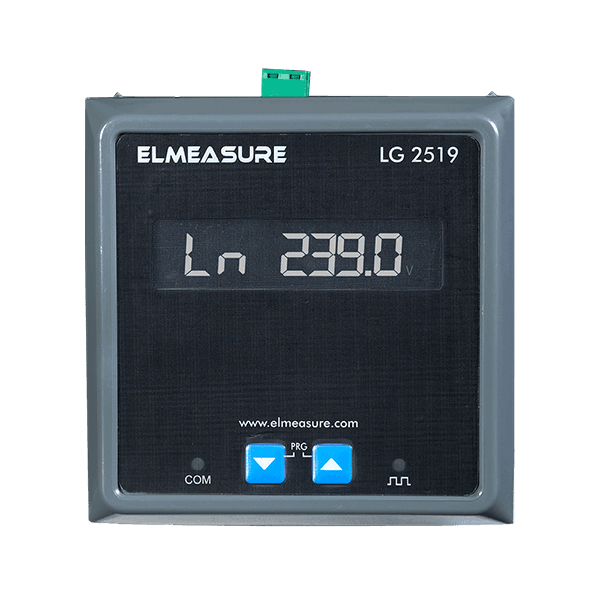

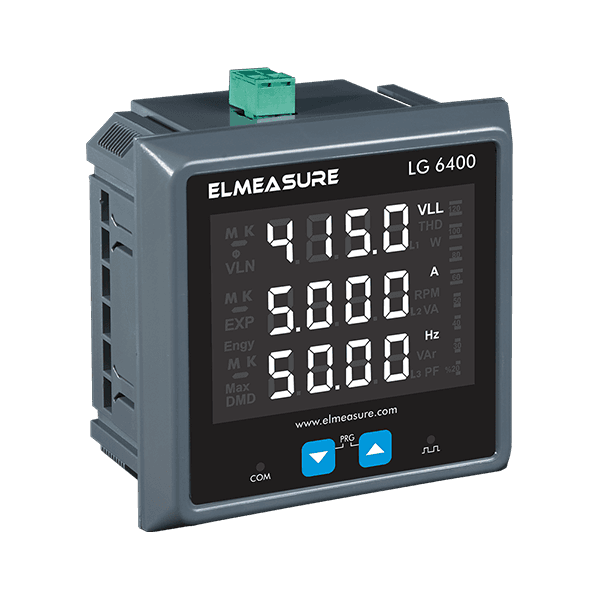

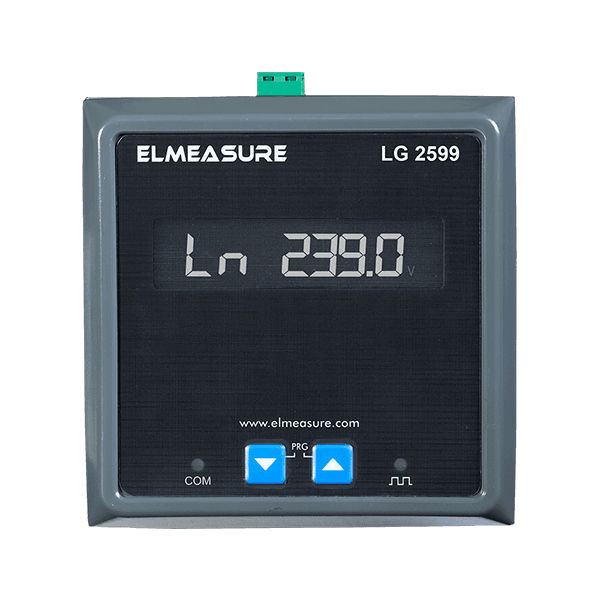

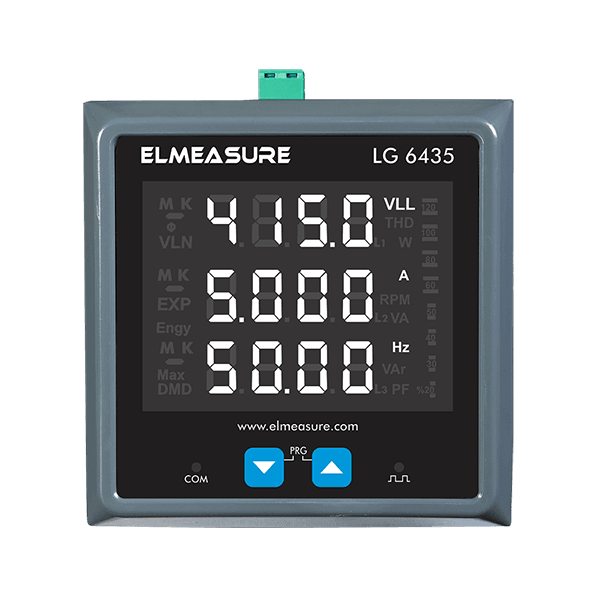

Panel Mount Three Phase	LCD single row (7 digits), LED 3Row (4 digits each)

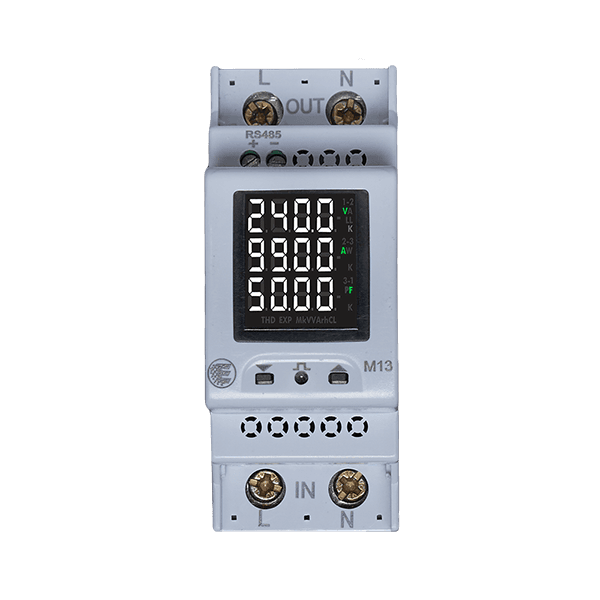

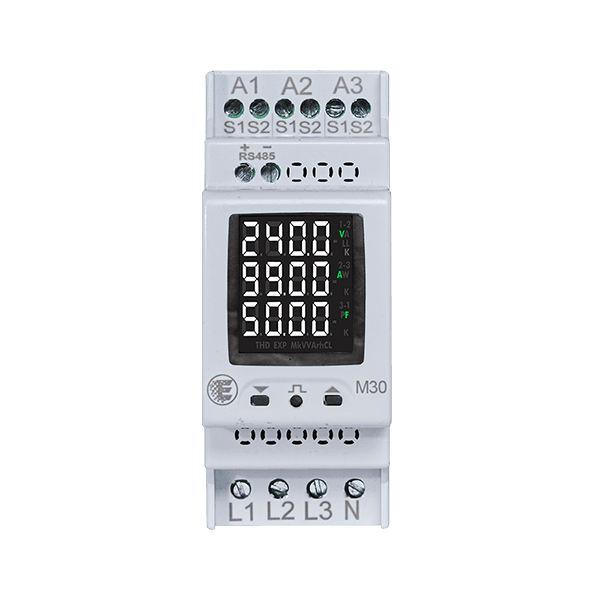

2DIN Single Phase/Three Phase	LCD (3 row, 4 digits)

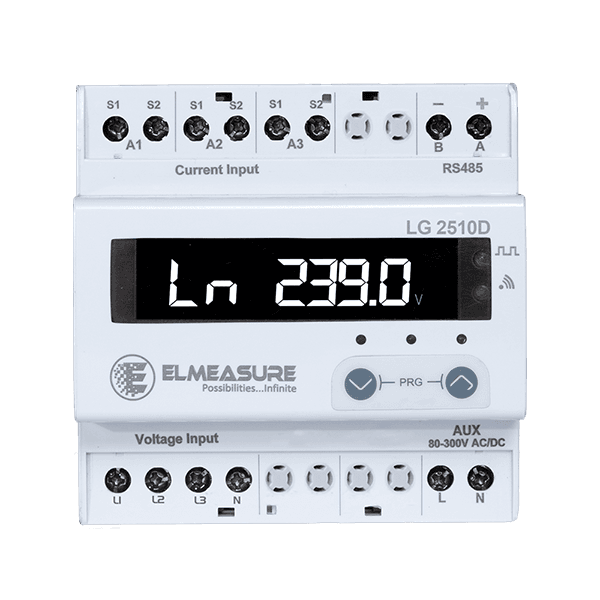

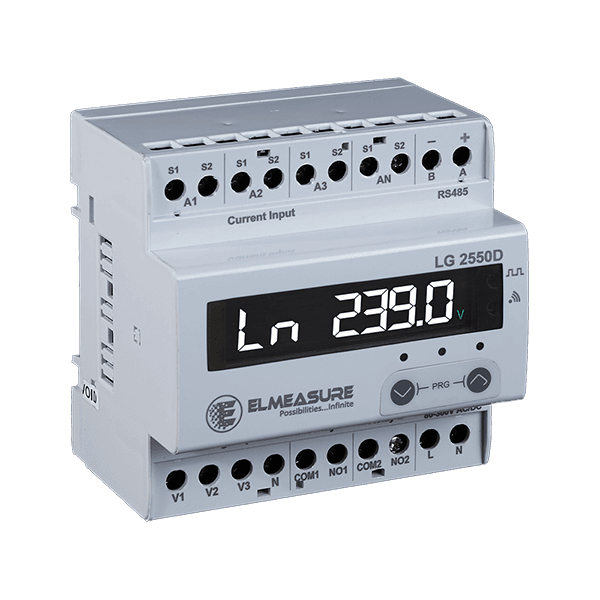

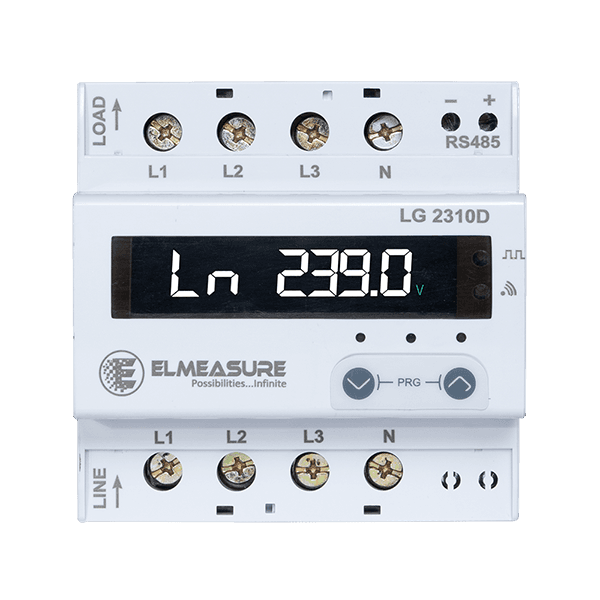

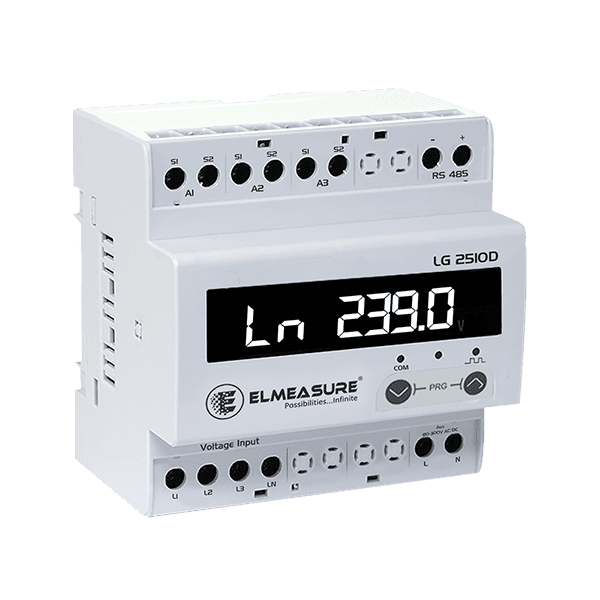

5DIN Three Phase	LCD (1 row, 7 digits)
Sensing / Measurement:	True RMS, 1 sec update time, 4-quadrant Power & Energy
Rated voltage
	Panel Mount Three Phase : 50-550 VLL
	2DIN Single Phase: 110-300 VLN
	5DIN Three Phase: 50-550 VLL
Rated current
	Panel Mount Three Phase: 10mA - 6A for 5A meter
	2DIN Single Phase :100mA - 100A
	2DIN Three Phase / 5DIN :10mA - 6A for CT operated, 100mA - 100A for Direct Current
Frequency	45 - 65 Hz
Poles description
	Panel Mount Three Phase: 3P + N
	2DIN Single Phase: 1P + N
	2DIN Three Phase/ 5DIN: 3P + N
Measured accuracy class	Class 1.0 default (Class 0.5S / Class 0.2 as per IE 62053-22 Optional)
Programmable setting	415V LL Nominal & Primary Programmable up to 999 kV. Burden: 0.2VA Max. per phase
Permissible overload	120%, Burden: 0.2VA per phase
External fuse rating	200mA slow blow
CT PT ratio max	2000 MVA programmable
Auxiliary supply
	Panel Mount Three Phase: 80-300V AC/DC, Lower AUX available on
	2DIN Three Phase: Self-powered for direct current, 60-300V AC/DC for CT operated
Power Consumption	5VA Max.
Data update rate	1 sec

Energy and Power Monitors

Multi-Functional Energy Meters

Accurate Power Monitoring with the Multi Function Energy Meter

Simultaneous measurement of various electrical energy and power parameters.
