What is the Basic Energy Meter?

The Basic Energy Meter is a reliable and cost-effective device used to monitor power consumption. It measures voltage, current, frequency, and other electrical parameters to help businesses and households manage energy use efficiently.

What is a DIN Rail Energy Meter?

A DIN Rail Energy Meter is a type of Basic Energy Meter designed to be mounted on a DIN rail, commonly used in industrial and commercial settings. It allows for easy installation and integration into existing power systems for energy monitoring.

What parameters does the Basic Power Meter measure?

The Basic Power Meter measures various parameters such as voltage, current, power factor, frequency, and harmonics. It provides accurate and real-time data, ensuring optimal energy management.

Can the Basic Energy Meter be used for Frequency Meter applications?

Yes, the Basic Energy Meter includes Frequency Meter functionality, allowing it to measure and monitor the frequency of the electrical system, which is essential for ensuring smooth operation of industrial equipment and power systems.

What is the accuracy of the Basic Energy Meter?

The Basic Energy Meter offers Class 1.0 accuracy as per IEC 62053-21, with an optional Class 0.5 accuracy for more precise measurements. This ensures reliable and accurate data for power monitoring applications.

Basic Energy & Power Meters | Digital Ammeter & Voltmeter

Accurate Power Monitoring with the Basic Energy Meter

The Basic Energy Meter is designed to offer accurate, real-time power monitoring for both industrial and residential applications. It is equipped to measure voltage, current, frequency, and other vital power parameters with precision. Whether you're using a DIN Rail Energy Meter or a panel-mounted unit, this meter provides comprehensive data on energy consumption, ensuring efficient system performance and helping to reduce costs. Equipped with Digital Ammeter, Digital Voltmeter, and Frequency Meter functionalities, it is versatile and reliable.

My quote

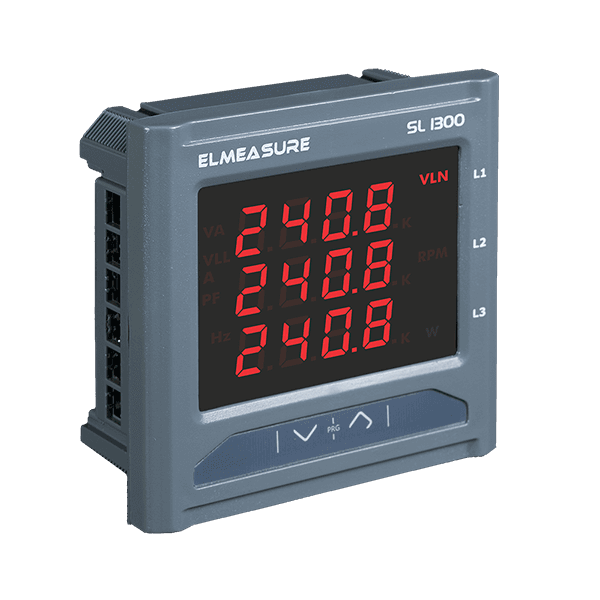

Basic Meters
Accuracy	Class 1.0 (Default) - EC 62053-21,Class 0.5 (Optional)
Sensing/Measurement:	True RMS, 1 Sec. update time
Input Voltage	4 Voltage inputs (V1 V2 V3 VN); (Range 80 to 550V LL)
Input Frequency	45 - 65 Hz
Input Current	Current inputs (A1 A2 A3) 20mA - 6A (Field configurable 1A or 5A).
Aux-Supply	40-300V AC/DC. 24V DC optional for selected (control power): models on request (MOQ).
Protection Class	IP 51 ( IP 54 front facia optional ) & Double Insulation (As per IEC 61010-1)
Display resolution	4 digits display with 14mm height
Communication	Modbus RTU & RS485
Torque	1 N-m
Wire gauge	11 AWG
Operating Temperature	-10ᵒC to + 55ᵒC (14ᵒF to 131ᵒF).
Storage Temperature	-25ᵒC to + 70ᵒC (-13ᵒF to 158ᵒF)

Energy and Power Monitors

Basic Meters

Accurate Power Monitoring with the Basic Energy Meter

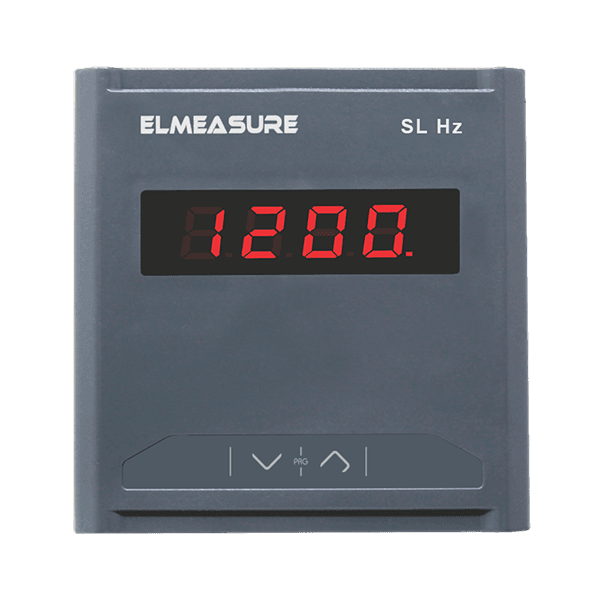

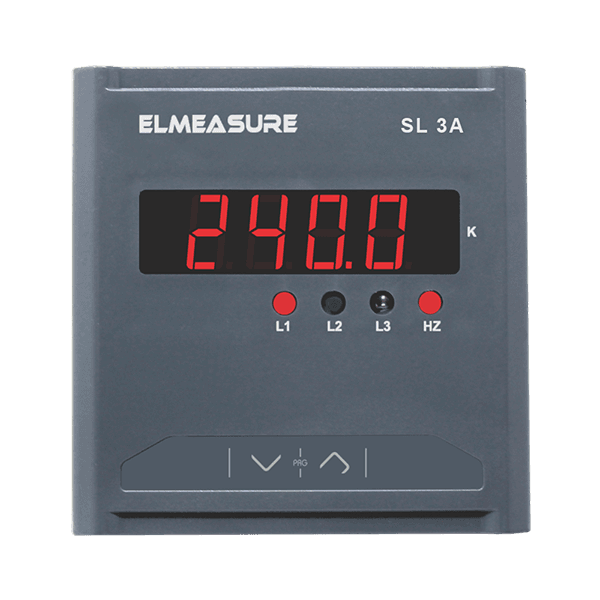

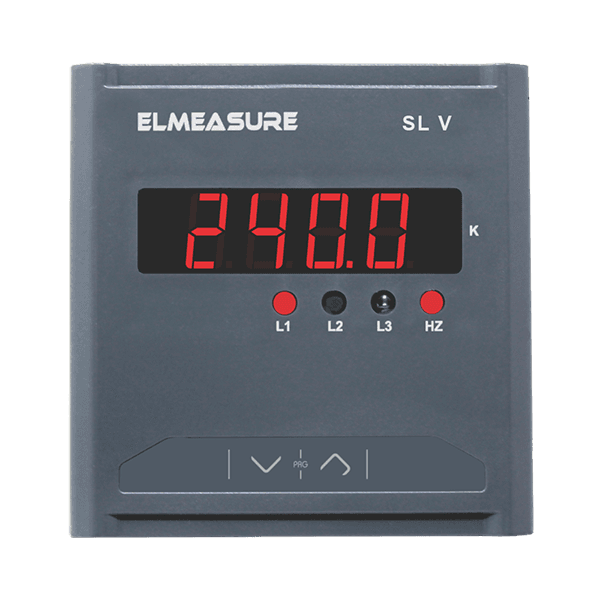

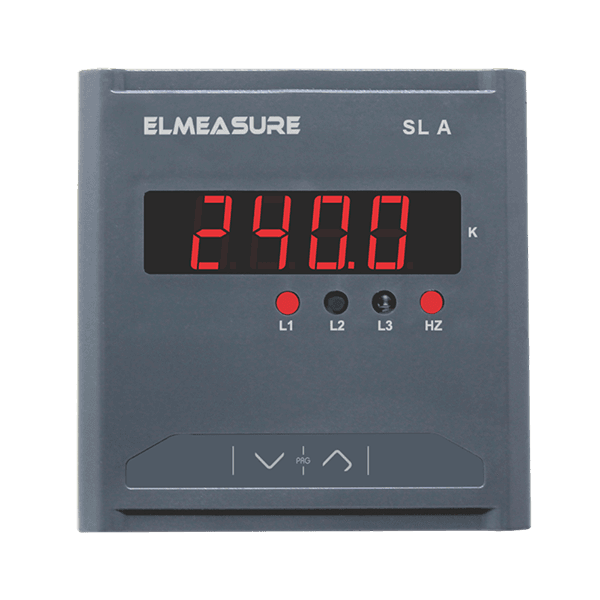

Basic VAF meters for reliable and cost-effective panels.
